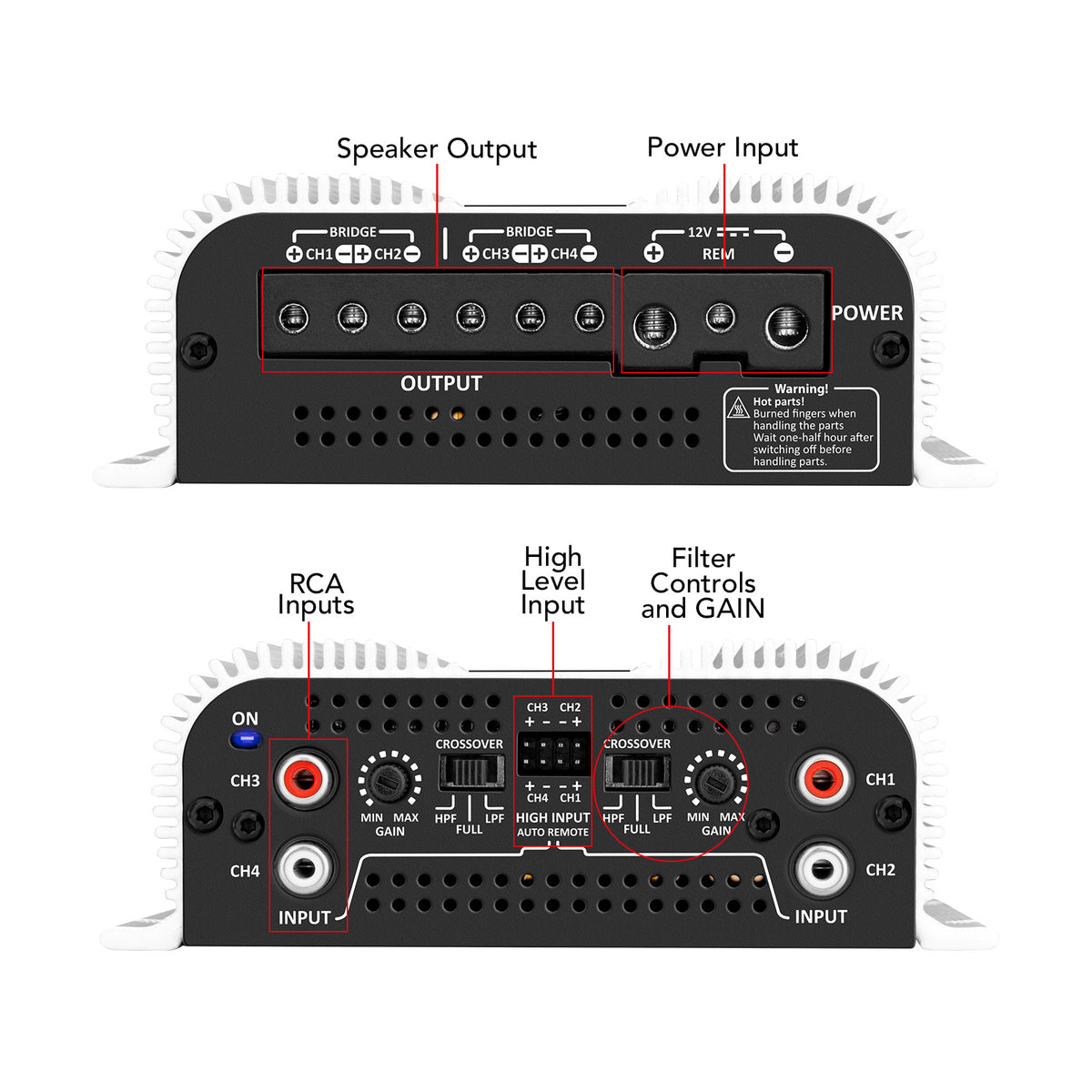

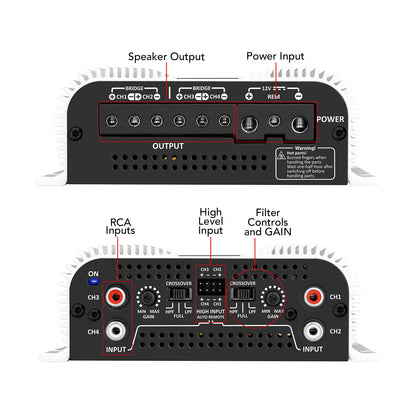

Taramps TS 800X4

1 Ohm

Minimum output impedance: 2 Ohms, Rated power @13.8VDC - 1 OHMS: 800W RMS (4 x 200W RMS), Rated
power @13.8VDC - 2 OHMS: 544W RMS (4 x 136W RMS), 2 Channels Bridged - 2 Ohms: 800W RMS (2 x 400W RMS), Frequency
Response (Full Range): 10Hz ~ 20KHz (-3dB), Musical Consumption @13.8VDC: 42A, Rated Power Consumption: 85A,

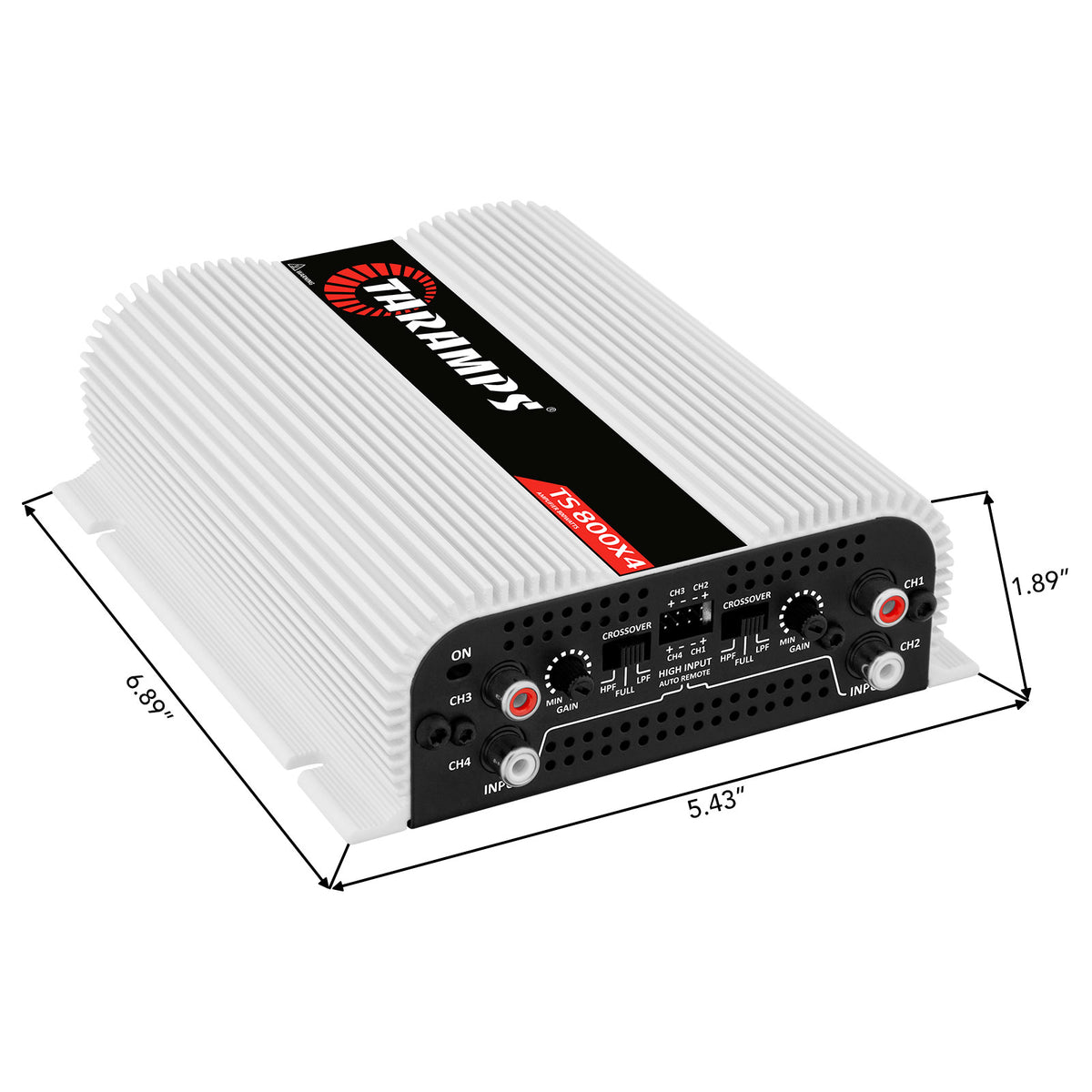

Dimensions (W x H x L): 138 x 48 x 175mm, Weigth: 0.87Kg

2 Ohm

Minimum output impedance: 2 Ohms, Rated power @13.8VDC - 2 OHMS: 800W RMS (4 x 200W RMS), Rated
power @13.8VDC - 4 OHMS: 544W RMS (4 x 136W RMS), 2 Channels Bridged - 4 Ohms: 800W RMS (2 x 400W RMS), Frequency
Response (Full Range): 10Hz ~ 20KHz (-3dB), Musical Consumption @13.8VDC: 38A, Rated Power Consumption: 76A,
Dimensions (W x H x L): 138 x 48 x 175mm, Weigth: 0.87Kg
