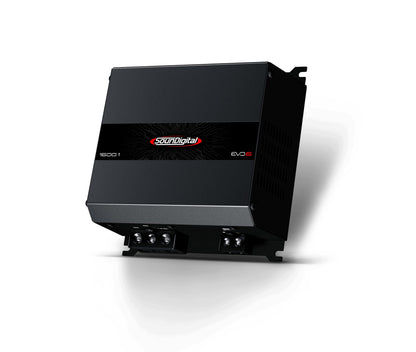

SounDigital 1600.1 EVO 6.0

Spezifikationen

1600.1 EVO6 – 1Ω
Power@ 4Ω: 1 x 679 WRMS
Power @ 2Ω: 1 x 1065 WRMS
Power @ 1Ω: 1 x 1600 WRMS
Operating Voltage: 10V – 16V
Current Draw (Music): 75 A
Current Draw (Max): 150 A
Recommended Fuse (Music): 80 A
Frequency Response (-3dB): 5Hz – 20kHz
SNR: 90.2 dB (4Ω), 90.15 dB (2Ω), 90.3 dB (1Ω)
Crossover HPF: 5Hz – 80Hz
Crossover LPF: 80Hz – 20kHz
Recommended Battery: 90 aH
Power Cable: 25 mm² (3 AWG)
Speaker Cable: 2.5 mm² (13 AWG) / 4.0 mm² (11 AWG bei 1Ω)
Product Dimensions: 14.7 x 12.9 x 6.6 cm
Weight: 1.20 kg

1600.1 EVO6 – 2Ω
Power@ 4Ω: 1 x 1065 WRMS
Power @ 2Ω: 1 x 1600 WRMS
Power @ 1Ω: N/A
Operating Voltage: 10V – 16V
Current Draw (Music): 75 A
Current Draw (Max): 150 A
Recommended Fuse (Music): 80 A
Frequency Response (-3dB): 5Hz – 20kHz
SNR: 90.15 dB (2Ω)
Crossover HPF: 5Hz – 80Hz
Crossover LPF: 80Hz – 20kHz
Recommended Battery: 90 aH
Power Cable: 25 mm² (3 AWG)
Speaker Cable: 2.5 mm² (13 AWG)
Product Dimensions: 14.7 x 12.9 x 6.6 cm
Weight: 1.20 kg
