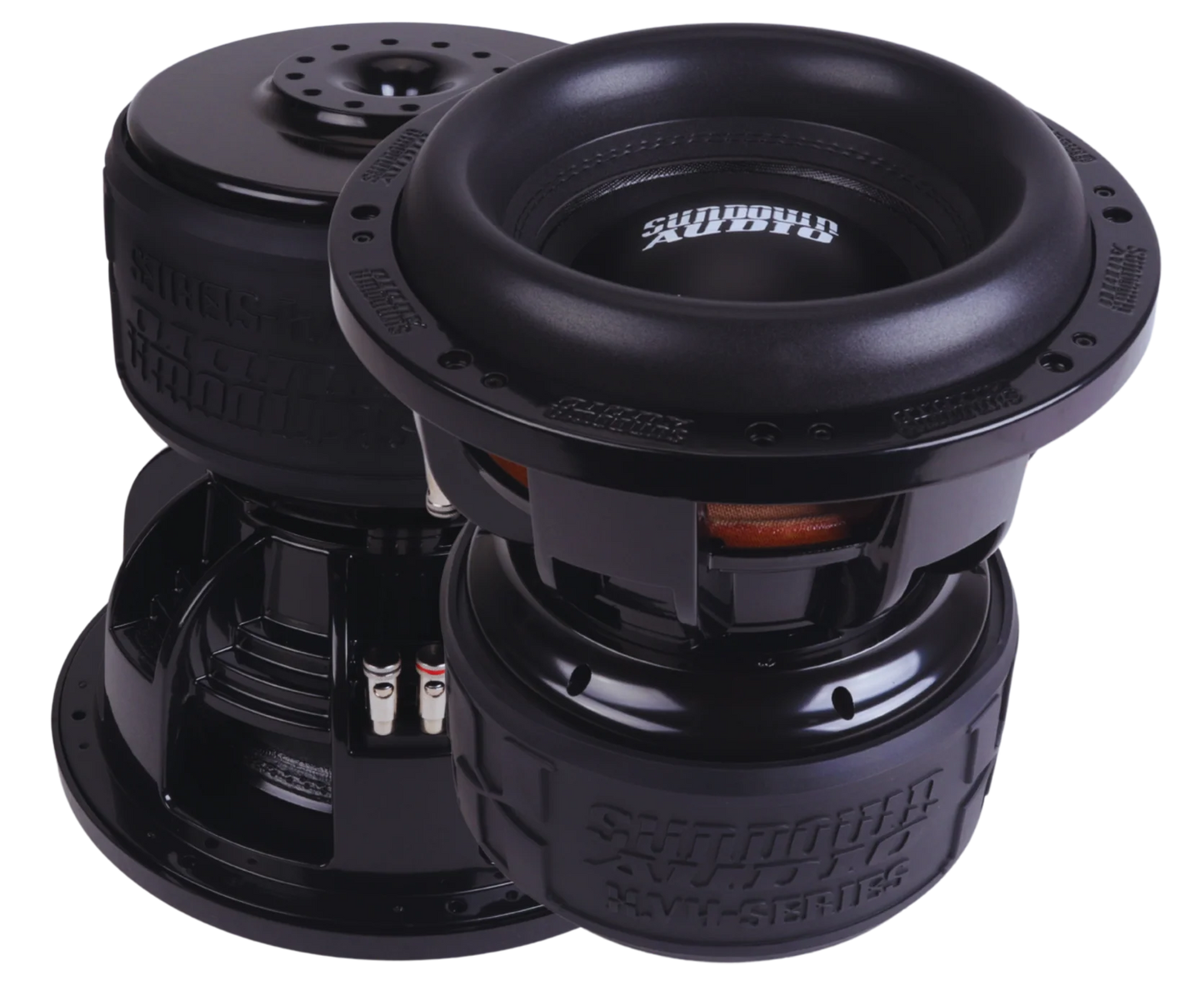

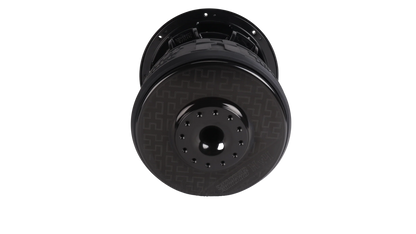

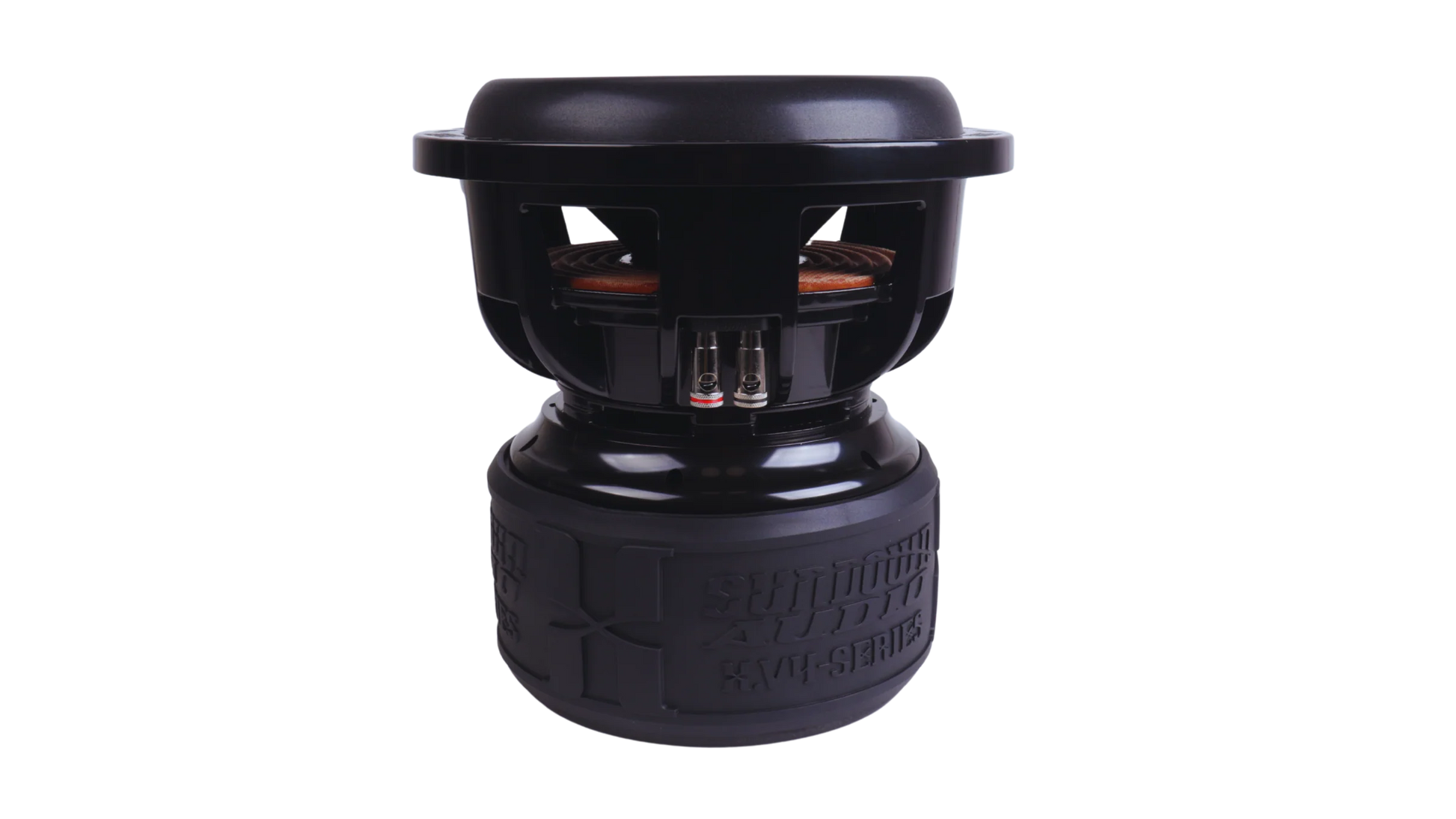

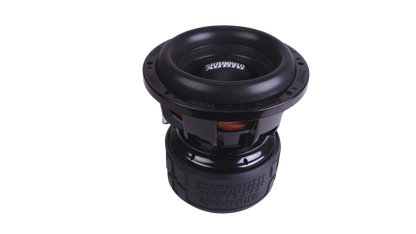

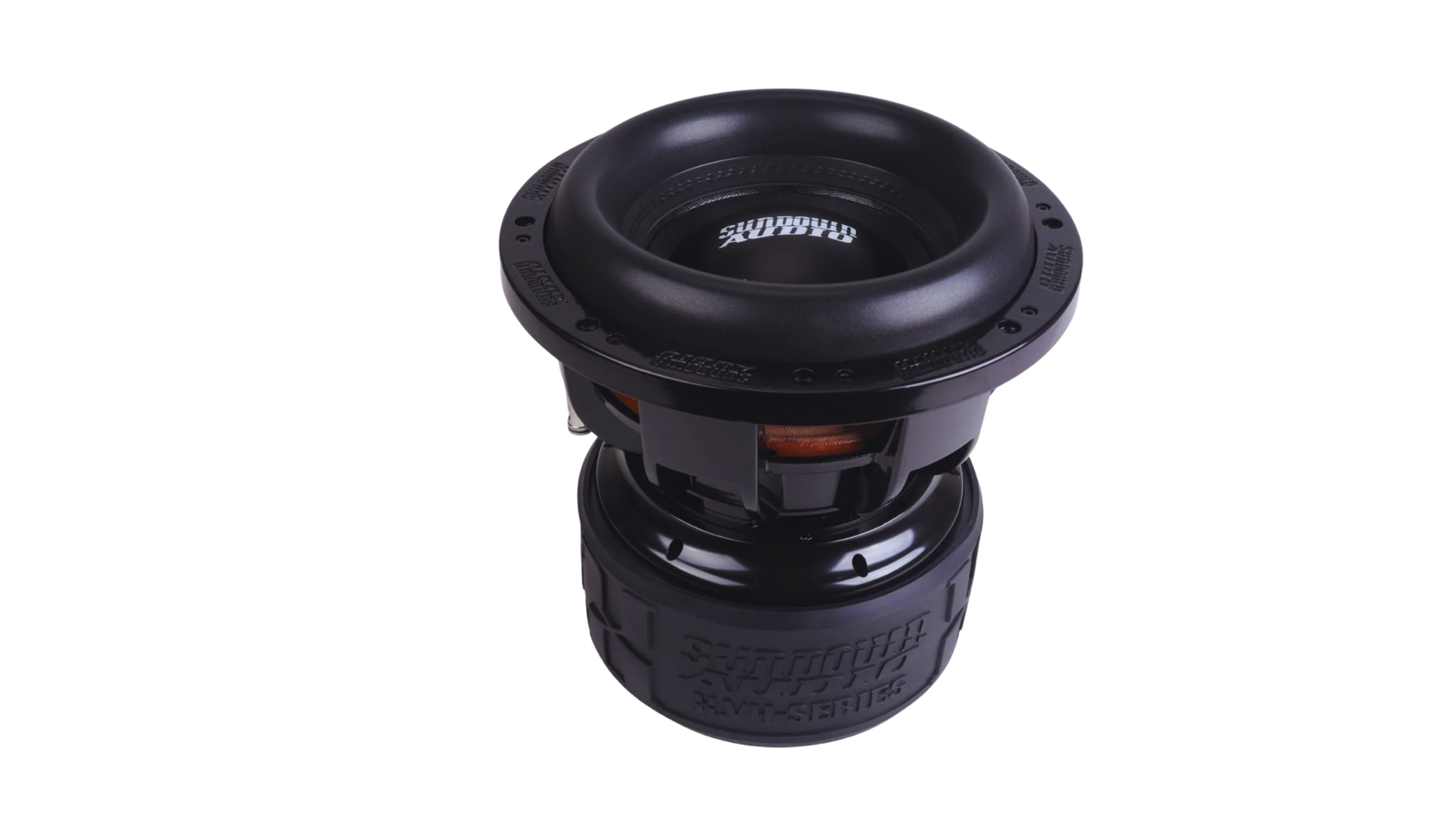

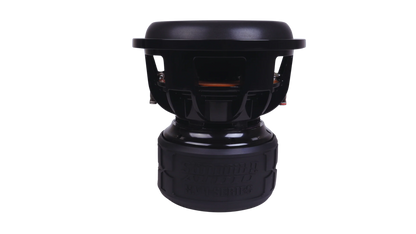

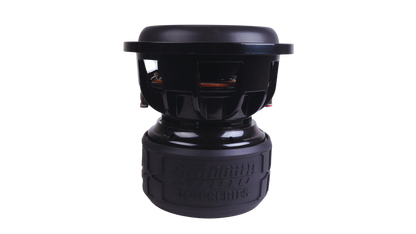

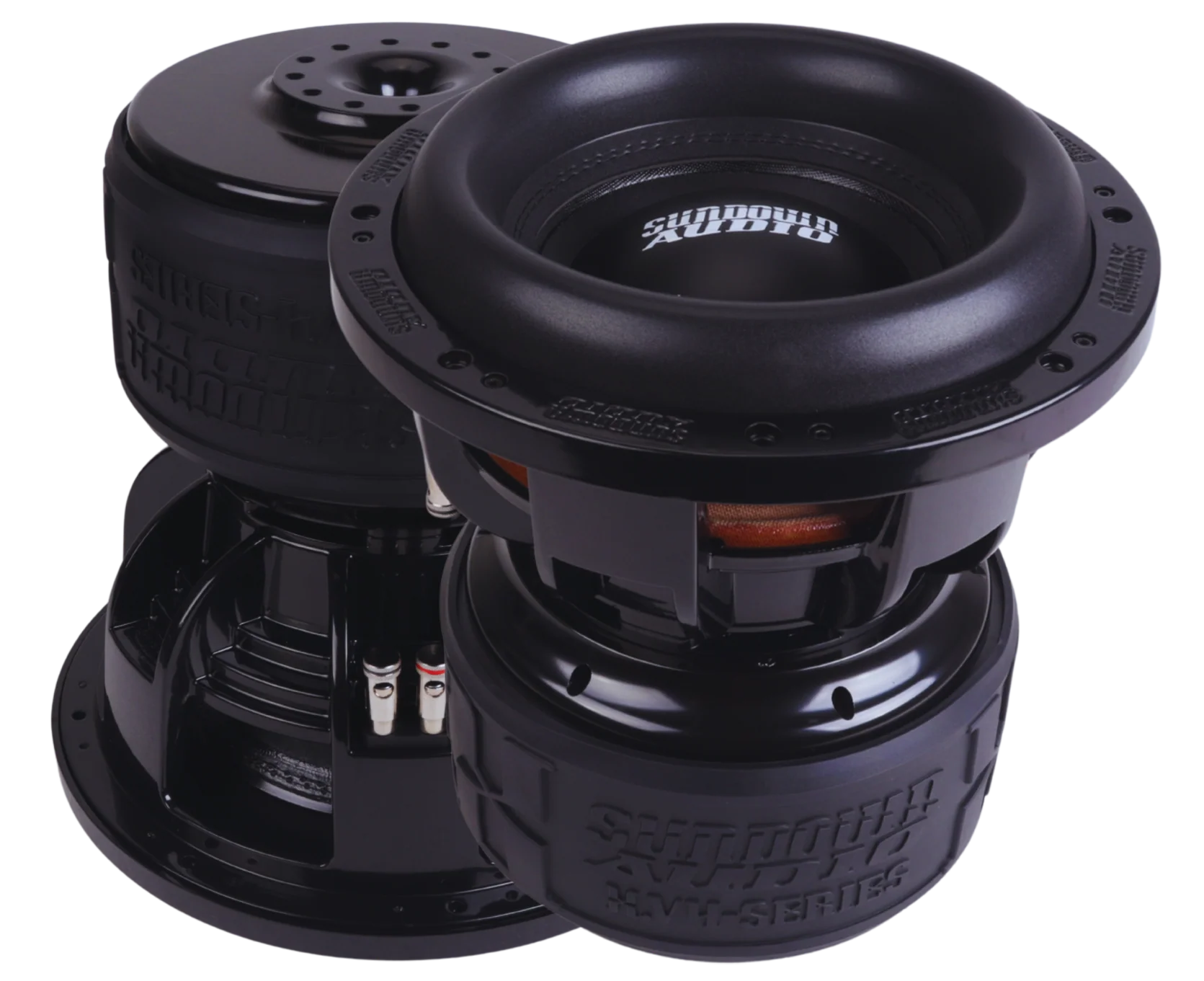

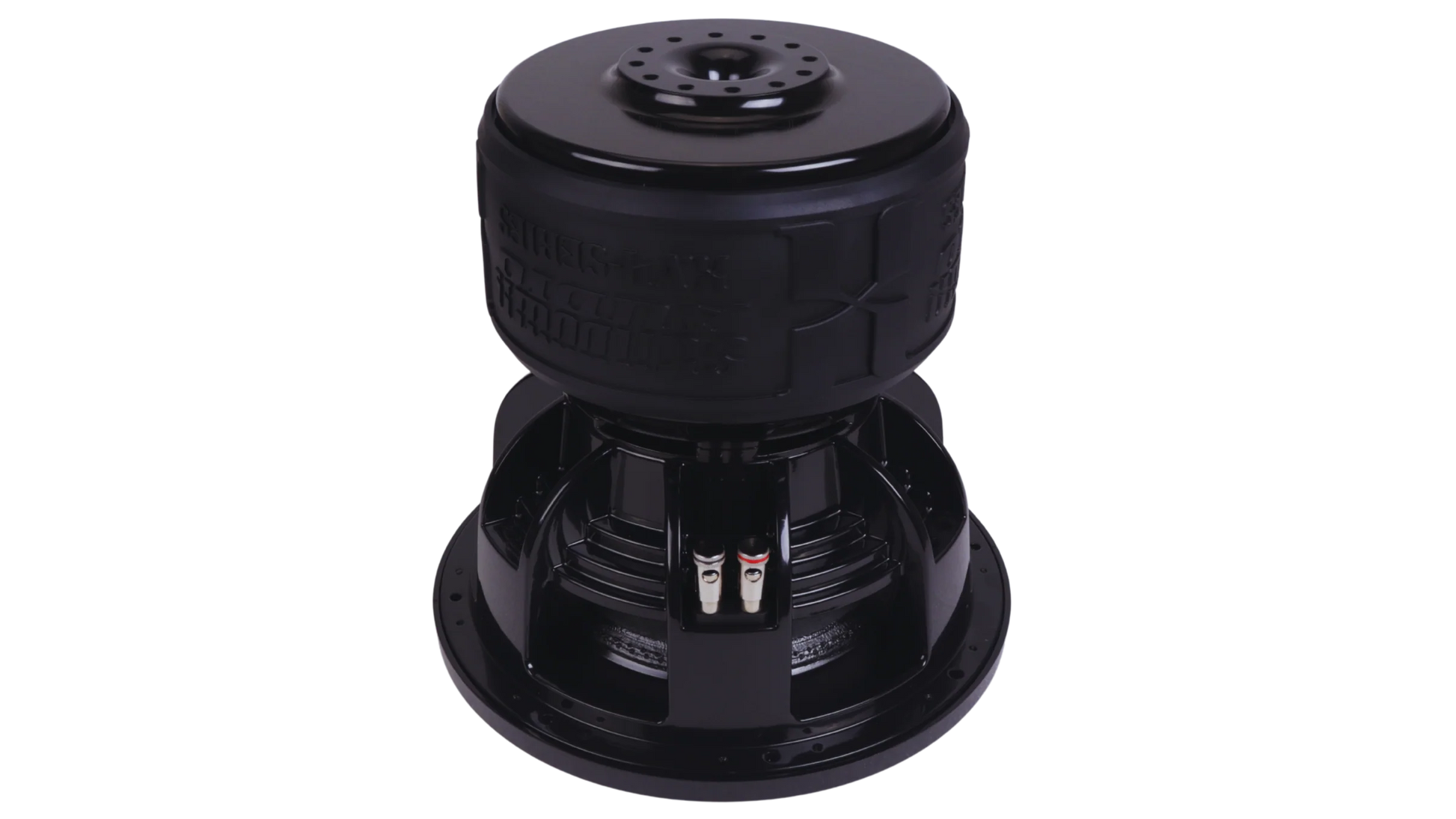

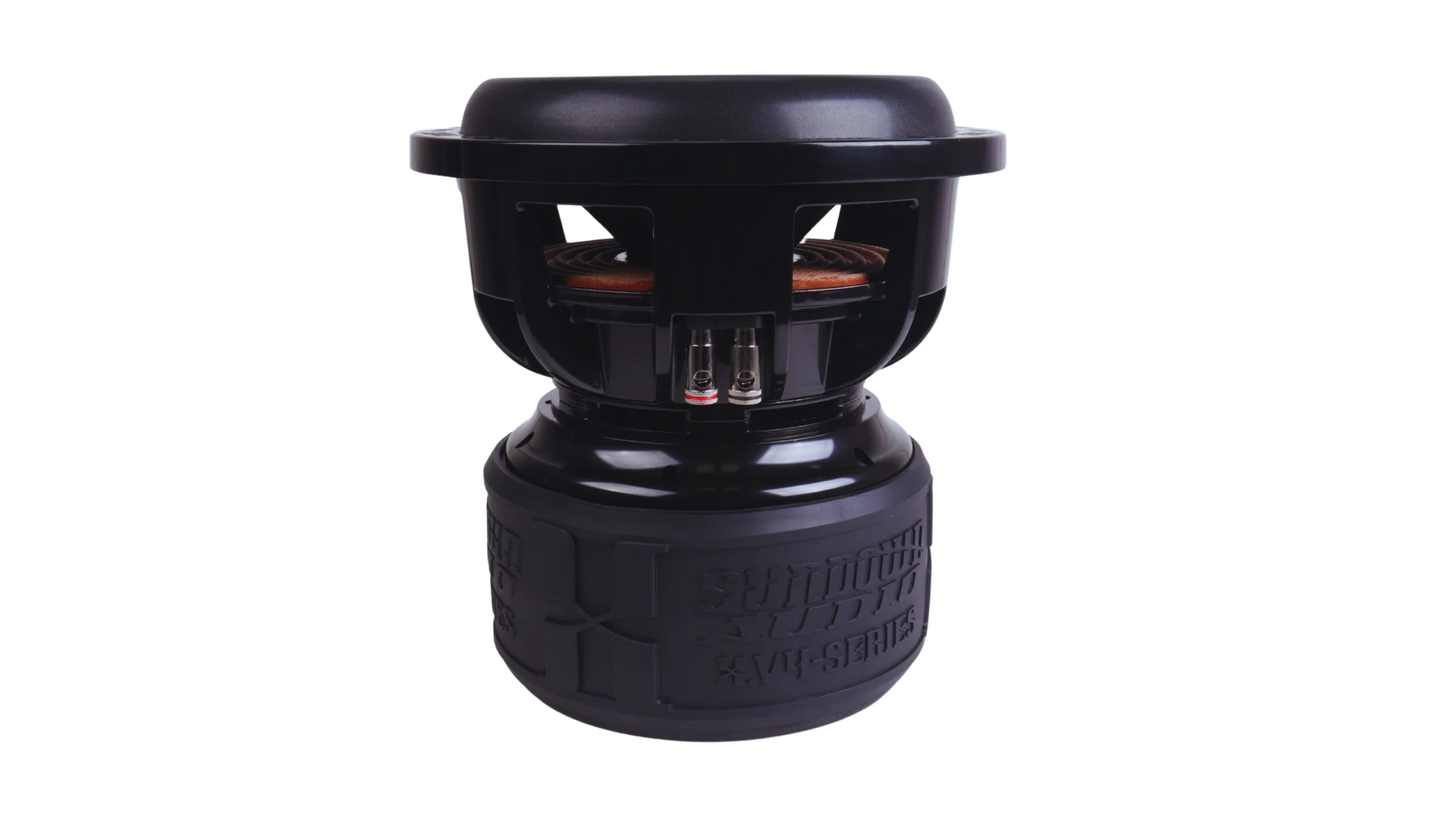

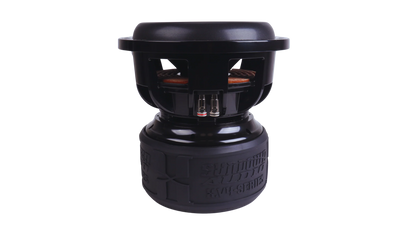

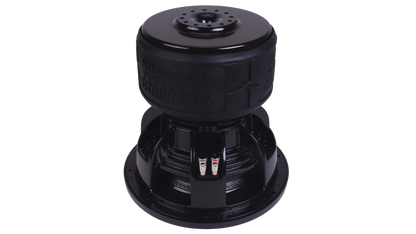

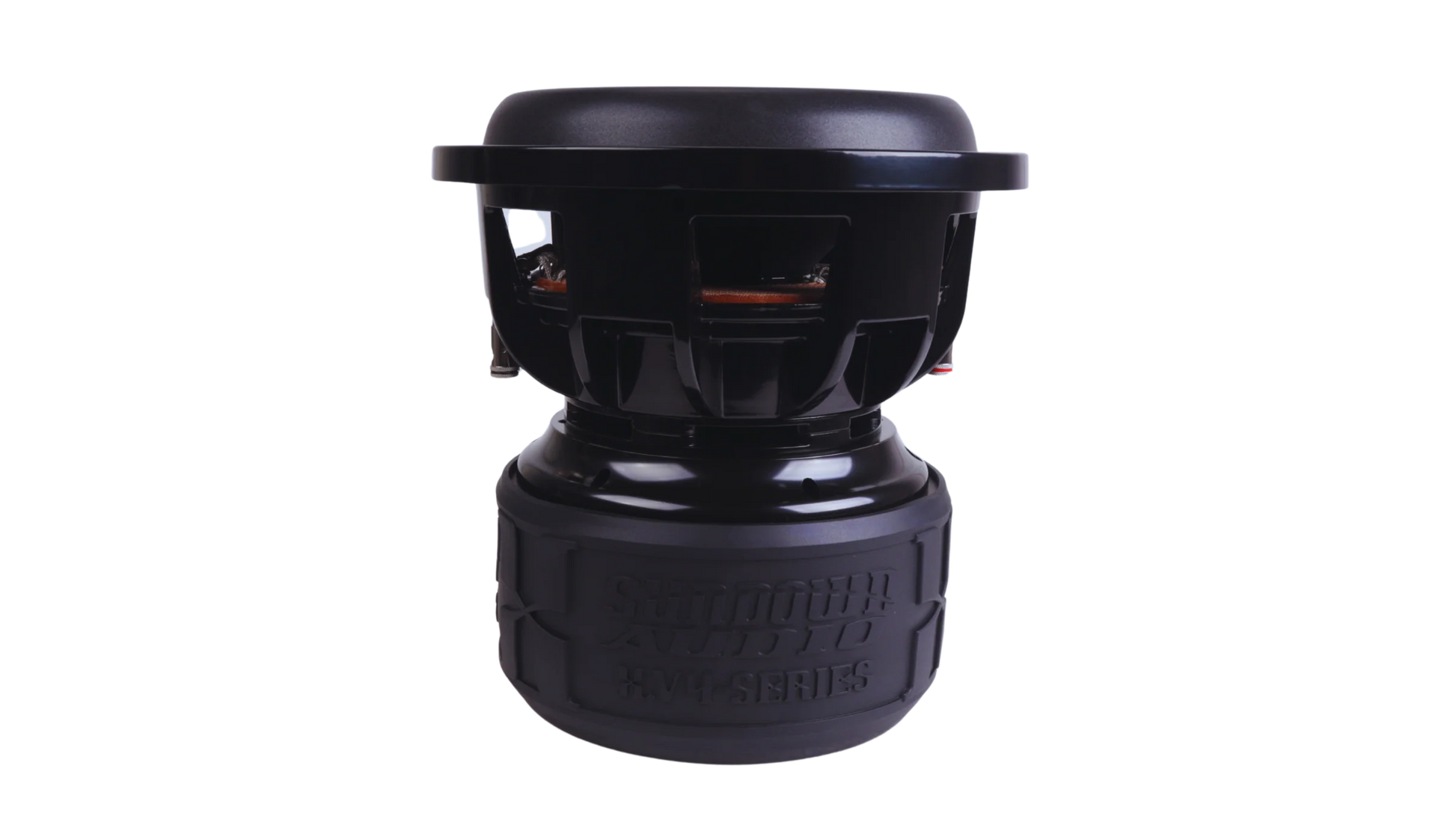

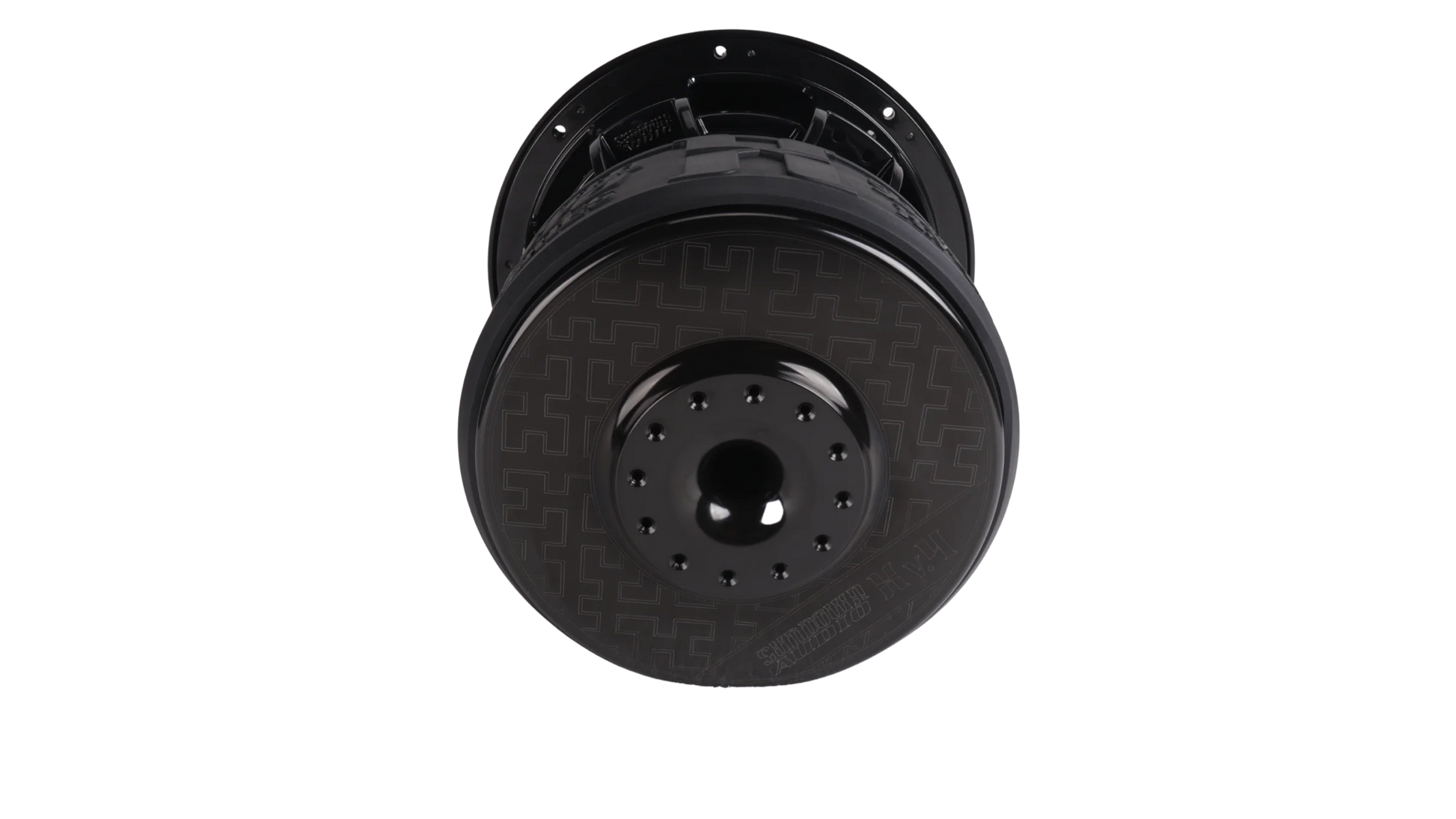

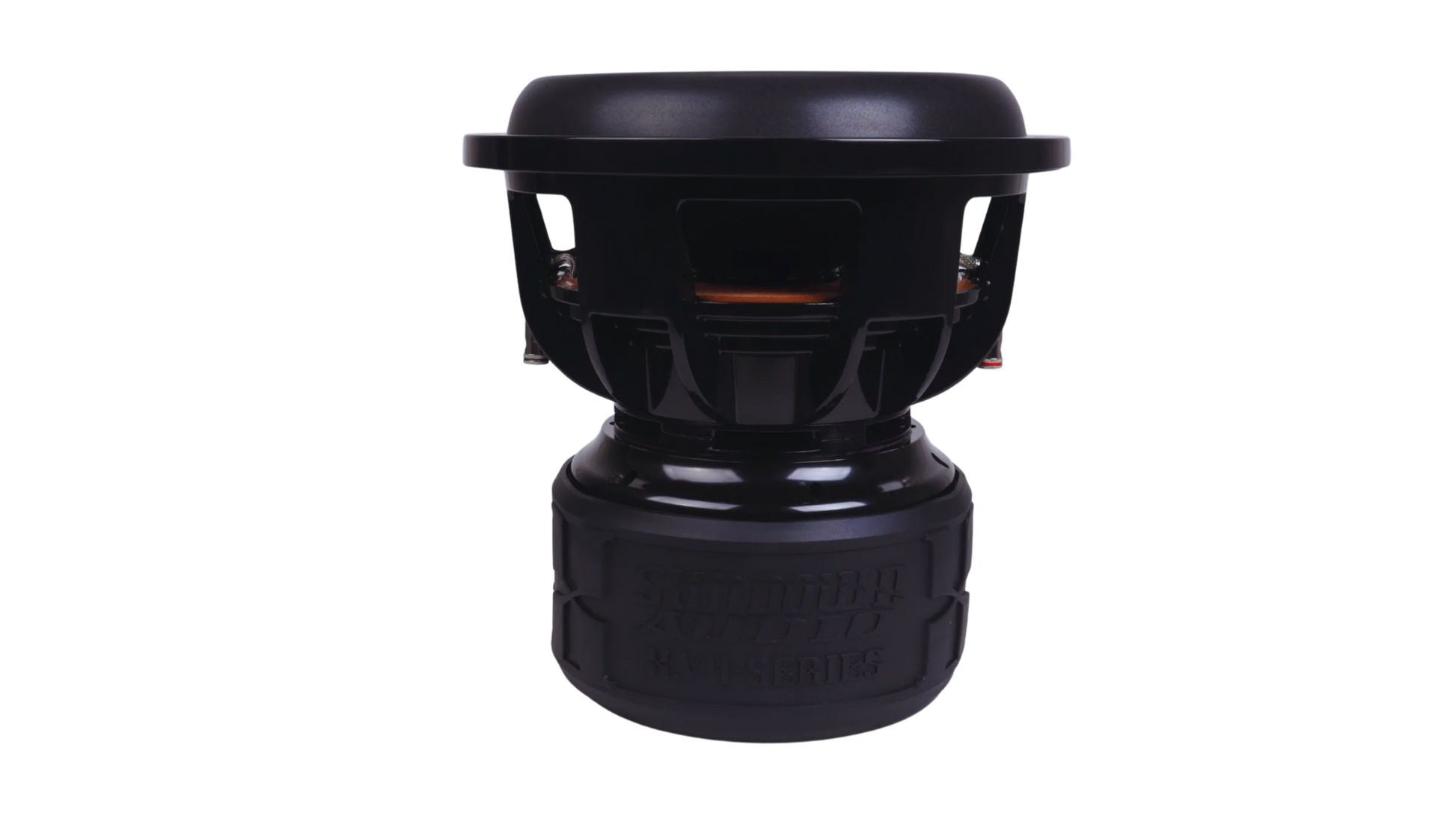

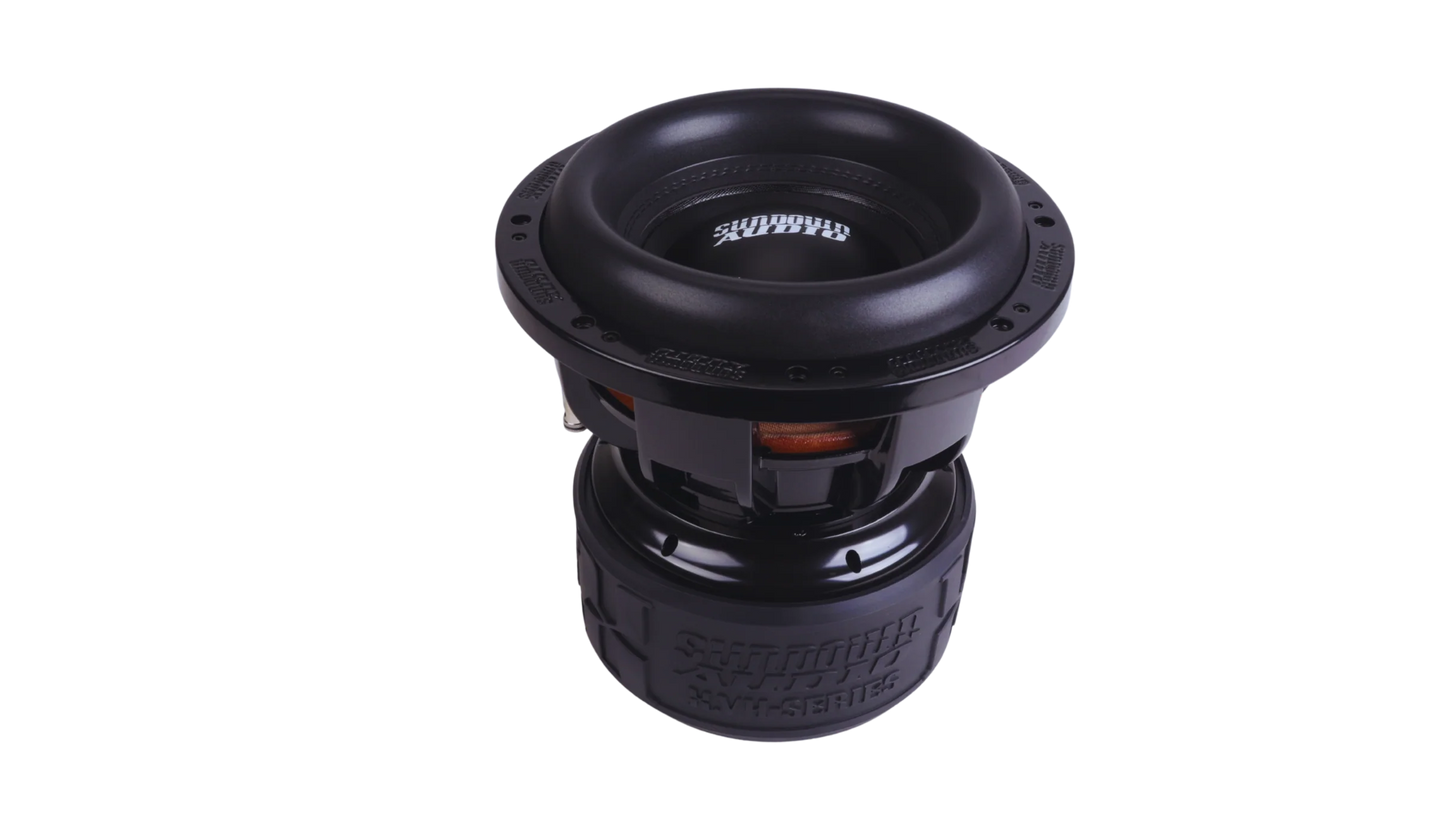

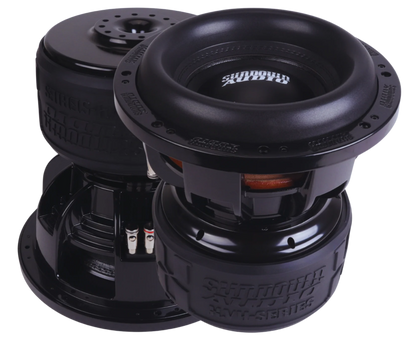

Sundown Audio X-10 v.4
Sundown Audio X-10 v.4
Normaler Preis
€1.199,99 EUR
Normaler Preis
Verkaufspreis
€1.199,99 EUR
Grundpreis
/
pro
Inkl. Steuern.
Verfügbarkeit für Abholungen konnte nicht geladen werden
| Specification | Xv4 10D1 | Xv4 10D2 |
|---|---|---|
| RMS Power | 3000W | 3000W |
| Peak Power | 6000W | 6000W |
| Displacement | 0.22 cu. ft. | 0.22 cu. ft. |
| Depth | 11" | 11" |
| Outside Diameter | 11.81" | 11.81" |
| Cutout Diameter | 10.01" | 10.01" |
| Motor Diameter | 9.25" | 9.25" |
| Sealed Enclosure | Not Recommended | Not Recommended |
| Ported Enclosure | 1.5 cu. ft. | 1.5 cu. ft. |
| Recommended Port Tuning | 32Hz | 32Hz |
| Recommended Port Area | 24 sq in | 24 sq in |
| 4th Order Sealed Side | 0.75 cu ft | 0.75 cu ft |
| 4th Order Ported Side | 2.25 cu ft | 2.25 cu ft |
| 4th Order Port Area | 45 sq in | 45 sq in |
| 4th Order Port Length | 8" | 8" |
| Xmax | 30mm | 30mm |
| Sd (Cone Area) | 35.63 | 35.63 |
| Re (Ohms) | 3.2 | 3.74 |
| Fs (Hz) | 41.37 | 37.04 |
| Vas (L) | 8.24 | 8.38 |
| Qes | 0.58 | 0.46 |
| Qms | 5.07 | 3.99 |
| Qts | 0.52 | 0.41 |
| Le (mH) | 2.68 | — |
| BL (NA) | 22.19 | 27.41 |
| Mms | 341.7 | 396.92 |
| Cms | 43.29 | 46.49 |
| Sensitivity (dB) | 81.76 | 81.5 |
| T/S Specs | |
|---|---|
|
RMS Power (D2)
|
3000
|
|
RMS Power (D1)
|
3000
|
|
Peak Power (D1)
|
6000
|
|
Peak Power (D2)
|
6000
|
|
RE D1 (Ohms)
|
3.2
|
|
RE D2 (Ohms)
|
3.74
|
|
FS D1 (Hz)
|
41.37
|
|
FS D2 (Hz)
|
37.04
|
|
VAS D1 (L)
|
8.24
|
|
VAS D2 (L)
|
8.24
|
|
Qes D1
|
0.58
|
|
Qes D2
|
0.46
|
|
Qms D1
|
5.07
|
|
Qms D2
|
3.99
|
|
Qts D1
|
0.52
|
|
Qts D2
|
0.41
|
|
Le D1 (mH)
|
2.68
|
|
BL D1 (NA)
|
22.19
|
|
BL D2 (NA)
|
27.41
|
|
Mms D1 (Grams)
|
341.7
|
|
Mms D2 (Grams)
|
396.92
|
|
Cms D1 (uM/N)
|
43.29
|
|
Cms D2 (uM/N)
|
46.49
|
|
Sens D1 (dB @ 1w/1m)
|
81.76
|
|
Sens D2 (dB @ 1w/1m)
|
81.5
|
|
Xmax D1
|
30mm
|
|
Xmax D2
|
30mm
|
| Subwoofer Measurements | |
|
Displacement (Inches)
|
0.22cu.ft.
|
|
Depth (Inches)
|
11"
|
|
Cutout (Inches)
|
10.01"
|
|
Motor Diameter (Inches)
|
9.25"
|
| Ported Enclosure Specs | |
|
Ported Enclosure Size
|
1.5 cu ft
|
|
Recommended Port Area
|
24 sq in
|
|
Recommended Port Tuning
|
32hz
|
| 4th Order Enclosure Specs | |
|
4th Order Sealed Side
|
.75cu ft
|
|
4th Order Ported Side
|
2.25cu ft
|
|
4th Order Port Area
|
45sq in
|
|
4th Order Port Length
|
8"
|
