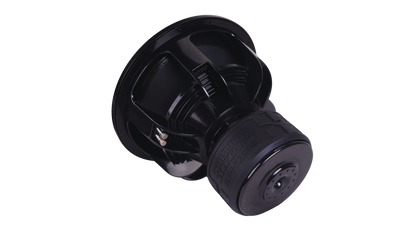

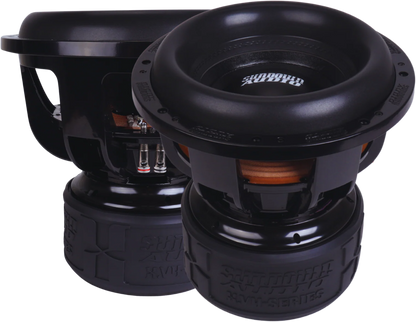

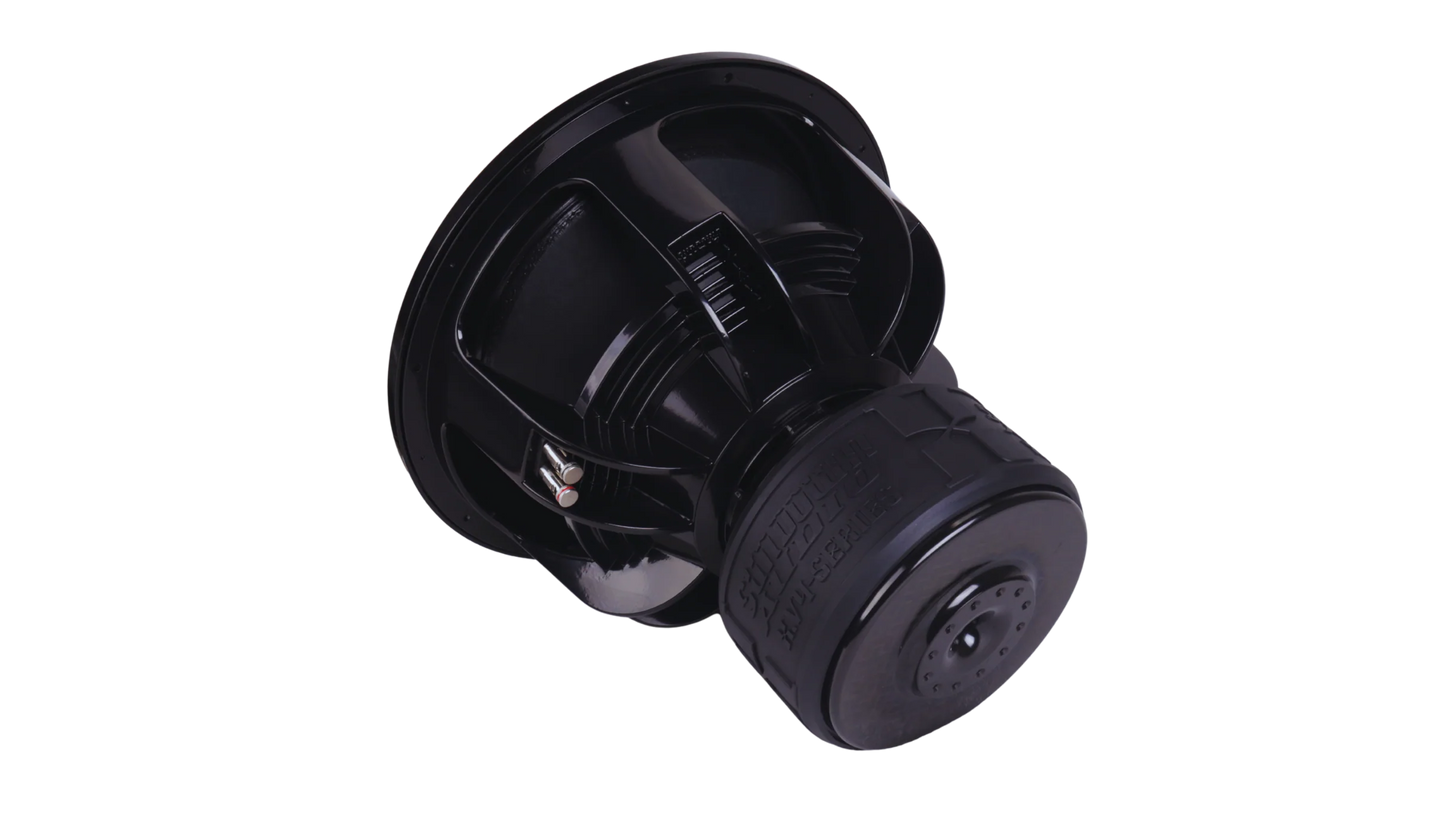

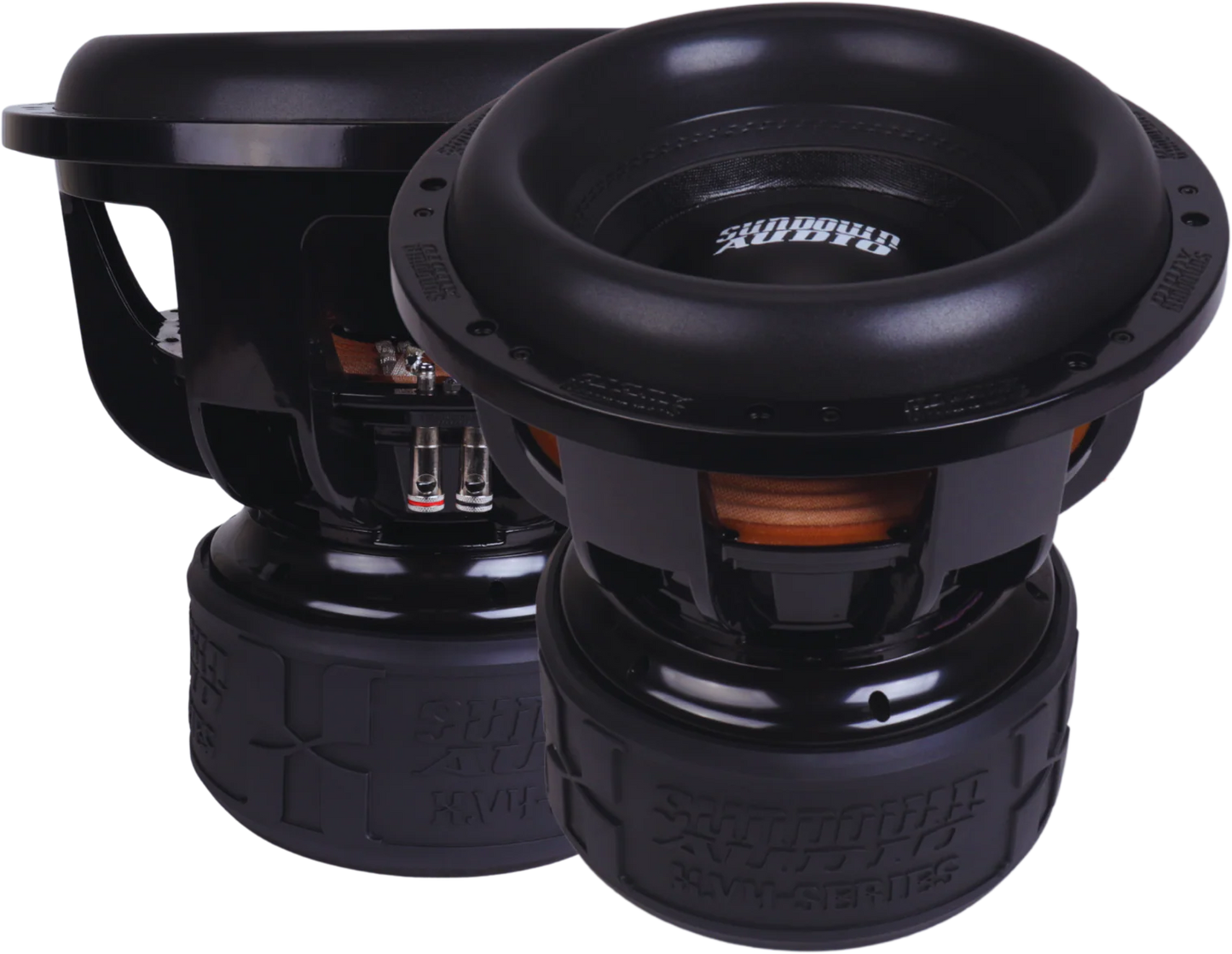

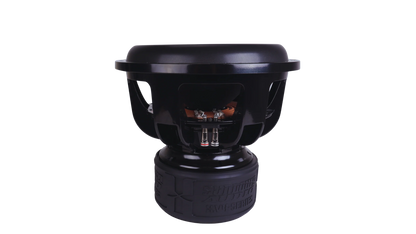

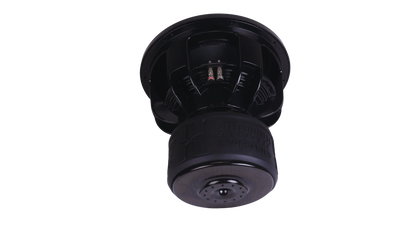

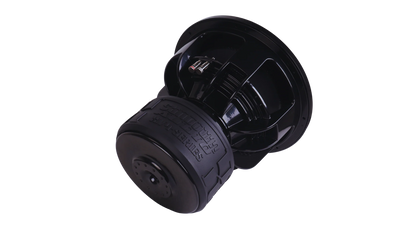

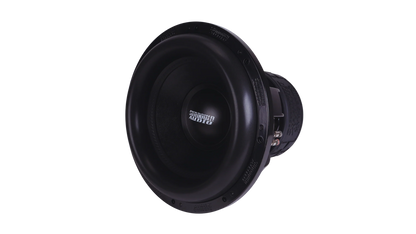

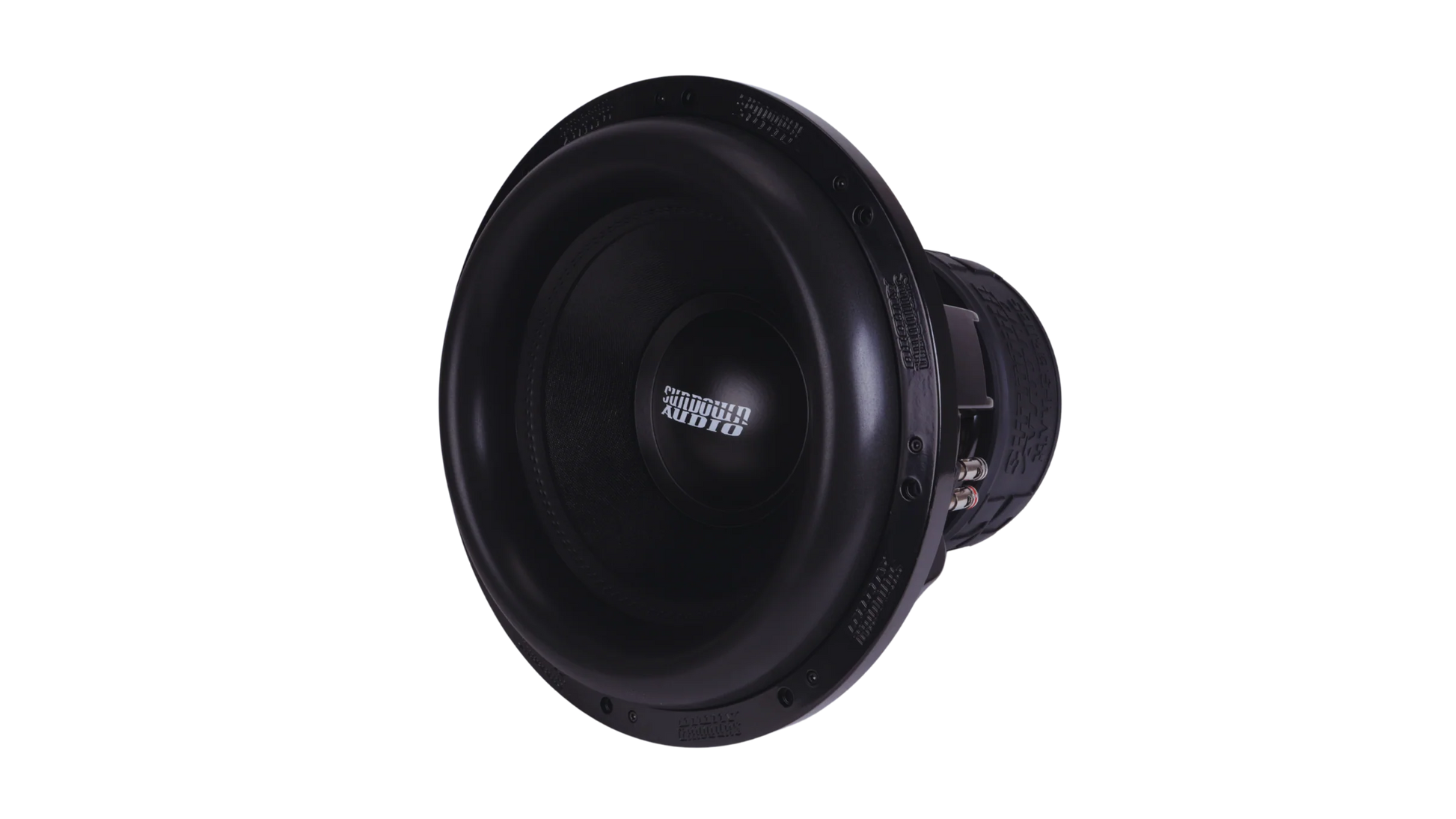

Sundown Audio X-15 v.4
Sundown Audio X-15 v.4
Normaler Preis
€1.349,99 EUR
Normaler Preis
Verkaufspreis
€1.349,99 EUR
Grundpreis
/
pro
Inkl. Steuern.
Verfügbarkeit für Abholungen konnte nicht geladen werden
Key Features
-
15″ high-performance subwoofer with X v.4 coils
-
3000W RMS / 6000W peak power handling
-
30mm Xmax for strong linear excursion
-
Optimized motor design (9.25″ diameter)
-
Recommended ported box: 4.25 cu ft @ 32 Hz
-
Robust cone design for high SPL output
-
Ideal for competitive and high-end car audio systems
Technical Specifications (Metafields Format)
| Parameter | XV4 15D1 | XV4 15D2 |
|---|---|---|
| RMS Power | 3000W | 3000W |
| Peak Power | 6000W | 6000W |
| Displacement | 0.26 cu.ft. | 0.26 cu.ft. |
| Mounting Depth | 12.95″ | 12.95″ |
| Outside Diameter | 15.51″ | 15.51″ |
| Cutout Diameter | 13.93″ | 13.93″ |
| Motor Diameter | 9.25″ | 9.25″ |
| Sealed Enclosure | Not Recommended | Not Recommended |
| Ported Enclosure | 4.25 cu ft | 4.25 cu ft |
| Recommended Port Tuning | 32 Hz | 32 Hz |
| Recommended Port Area | 68 sq in | 68 sq in |
| 4th Order Sealed Side | 2.0 cu ft | 2.0 cu ft |
| 4th Order Ported Side | 6.0 cu ft | 6.0 cu ft |
| 4th Order Port Area | 120 sq in | 120 sq in |
| 4th Order Port Length | 8″ | 8″ |
| Xmax | 30mm | 30mm |
| SD (Cone Area) | 72.58 in² | 72.58 in² |
| RE (Ohms) | 3.2 | 3.74 |
| FS (Hz) | 29.91 | 29.51 |
| Qes | 0.55 | 0.49 |
| Qms | 4.87 | 4.08 |
| Qts | 0.49 | 0.44 |
| BL (NA) | 22.32 | 27.44 |
| Mms (g) | 457.51 | 538.24 |
| CMS | 61.87 | 54.02 |
| Sensitivity | 85.29 dB | 85.1 dB |
| T/S Specs | |
|---|---|
|
RMS Power (D2)
|
3000
|
|
RMS Power (D1)
|
3000
|
|
Peak Power (D1)
|
6000
|
|
Peak Power (D2)
|
6000
|
|
RE D1 (Ohms)
|
3.2
|
|
RE D2 (Ohms)
|
3.74
|
|
FS D1 (Hz)
|
29.91
|
|
FS D2 (Hz)
|
29.51
|
|
VAS D1 (L)
|
31.43
|
|
VAS D2 (L)
|
40.41
|
|
Qes D1
|
0.55
|
|
Qes D2
|
0.49
|
|
Qms D1
|
4.87
|
|
Qms D2
|
4.08
|
|
Qts D1
|
0.49
|
|
Qts D2
|
0.44
|
|
Le D1 (mH)
|
2.57
|
|
BL D1 (NA)
|
22.32
|
|
BL D2 (NA)
|
27.44
|
|
Mms D1 (Grams)
|
457.51
|
|
Mms D2 (Grams)
|
538.24
|
|
Cms D1 (uM/N)
|
61.87
|
|
Cms D2 (uM/N)
|
54.02
|
|
Sens D1 (dB @ 1w/1m)
|
85.29
|
|
Sens D2 (dB @ 1w/1m)
|
85.1
|
|
Xmax D1
|
30mm
|
|
Xmax D2
|
30mm
|
| Subwoofer Measurements | |
|
Displacement (Inches)
|
0.26cu.ft.
|
|
Depth (Inches)
|
12.95"
|
|
Cutout (Inches)
|
13.93"
|
|
Motor Diameter (Inches)
|
9.25"
|
| Ported Enclosure Specs | |
|
Ported Enclosure Size
|
4.25 cu ft
|
|
Recommended Port Area
|
68 sq in
|
|
Recommended Port Tuning
|
32
|
| 4th Order Enclosure Specs | |
|
4th Order Sealed Side
|
2.0cu ft
|
|
4th Order Ported Side
|
6.0cu ft
|
|
4th Order Port Area
|
120sq in
|
|
4th Order Port Length
|
8"
|
