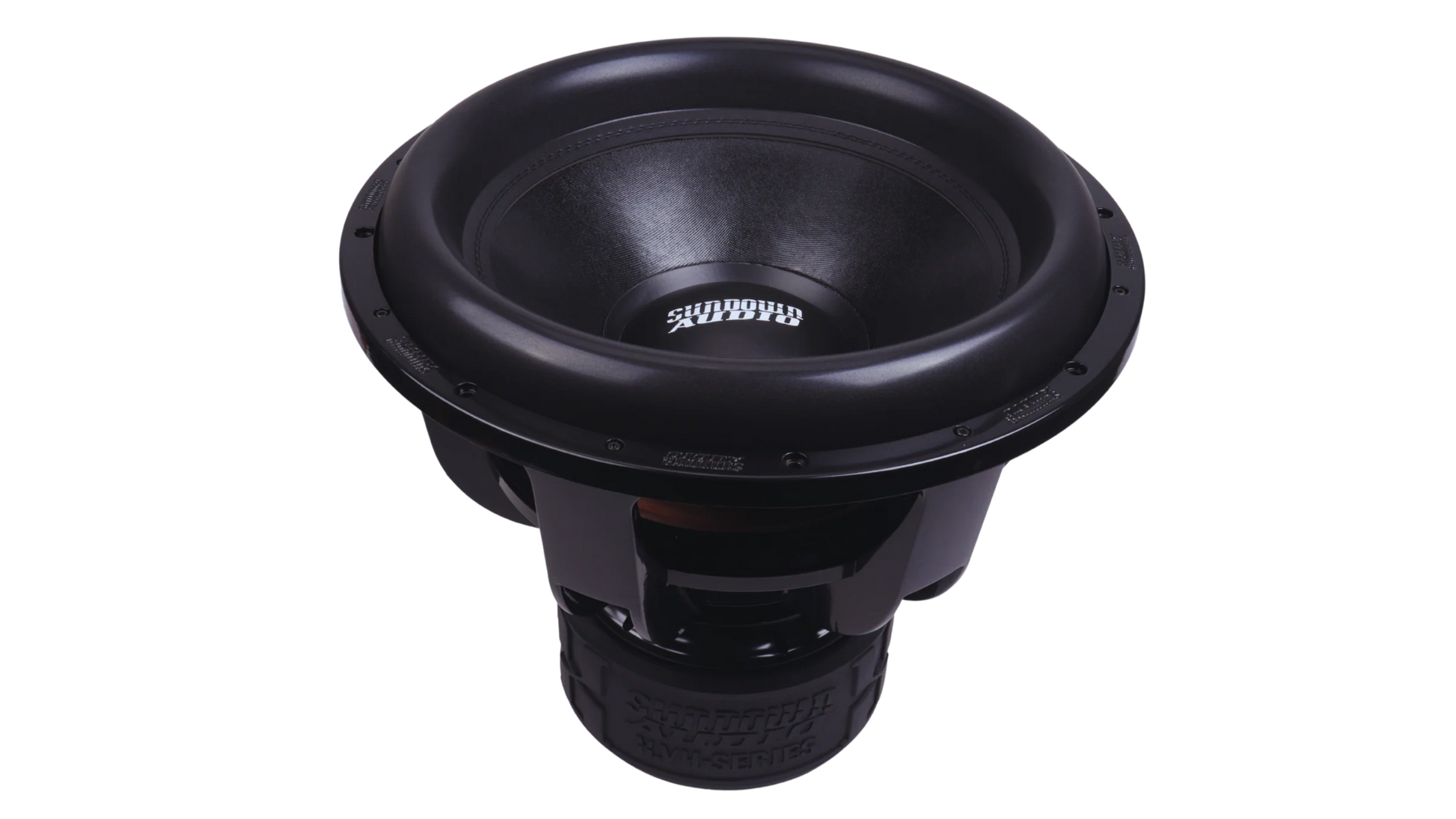

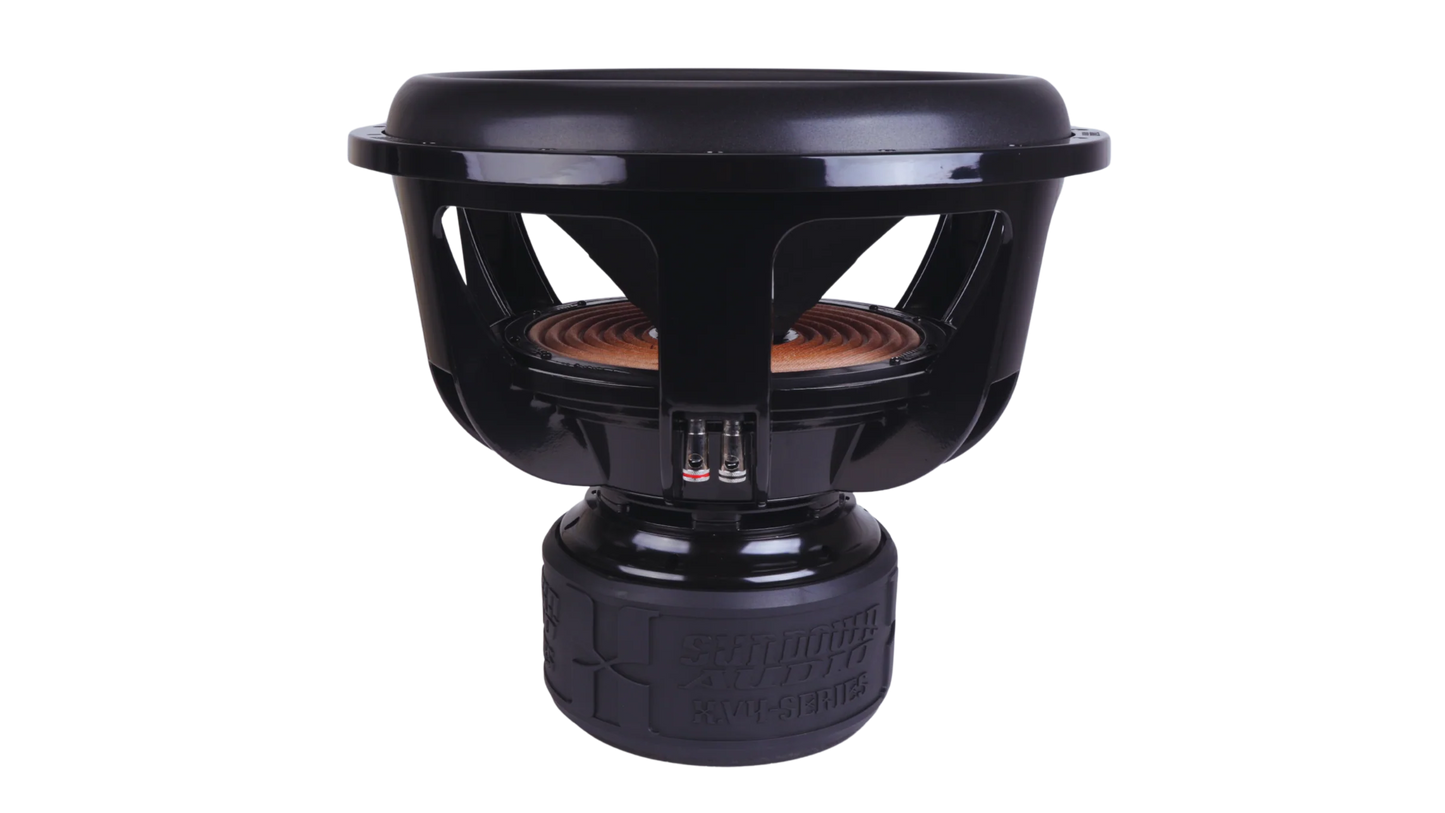

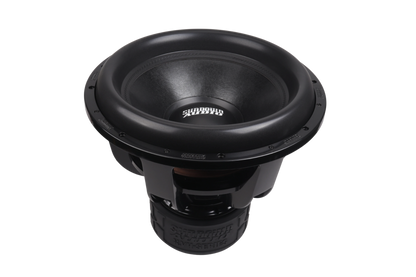

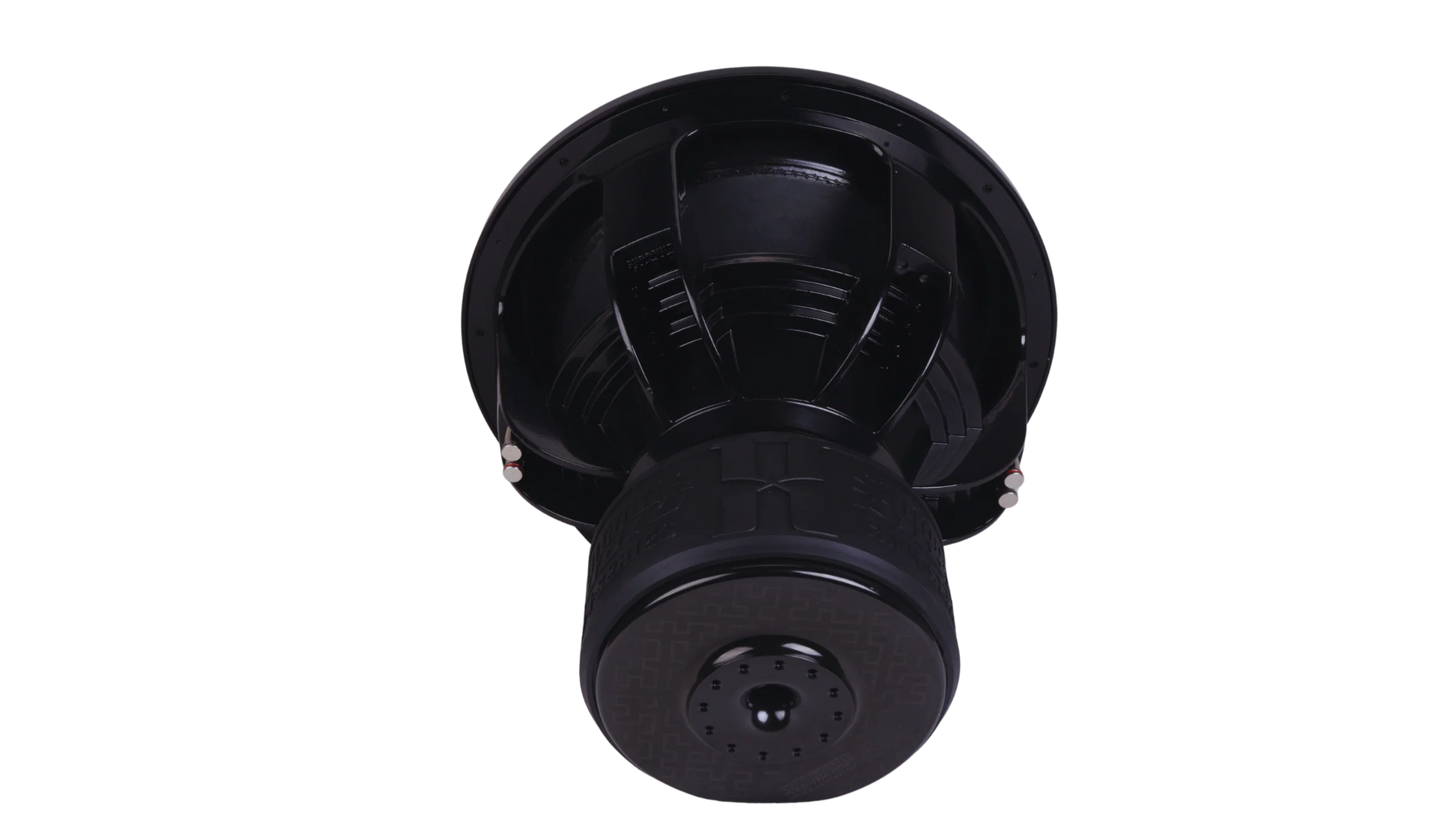

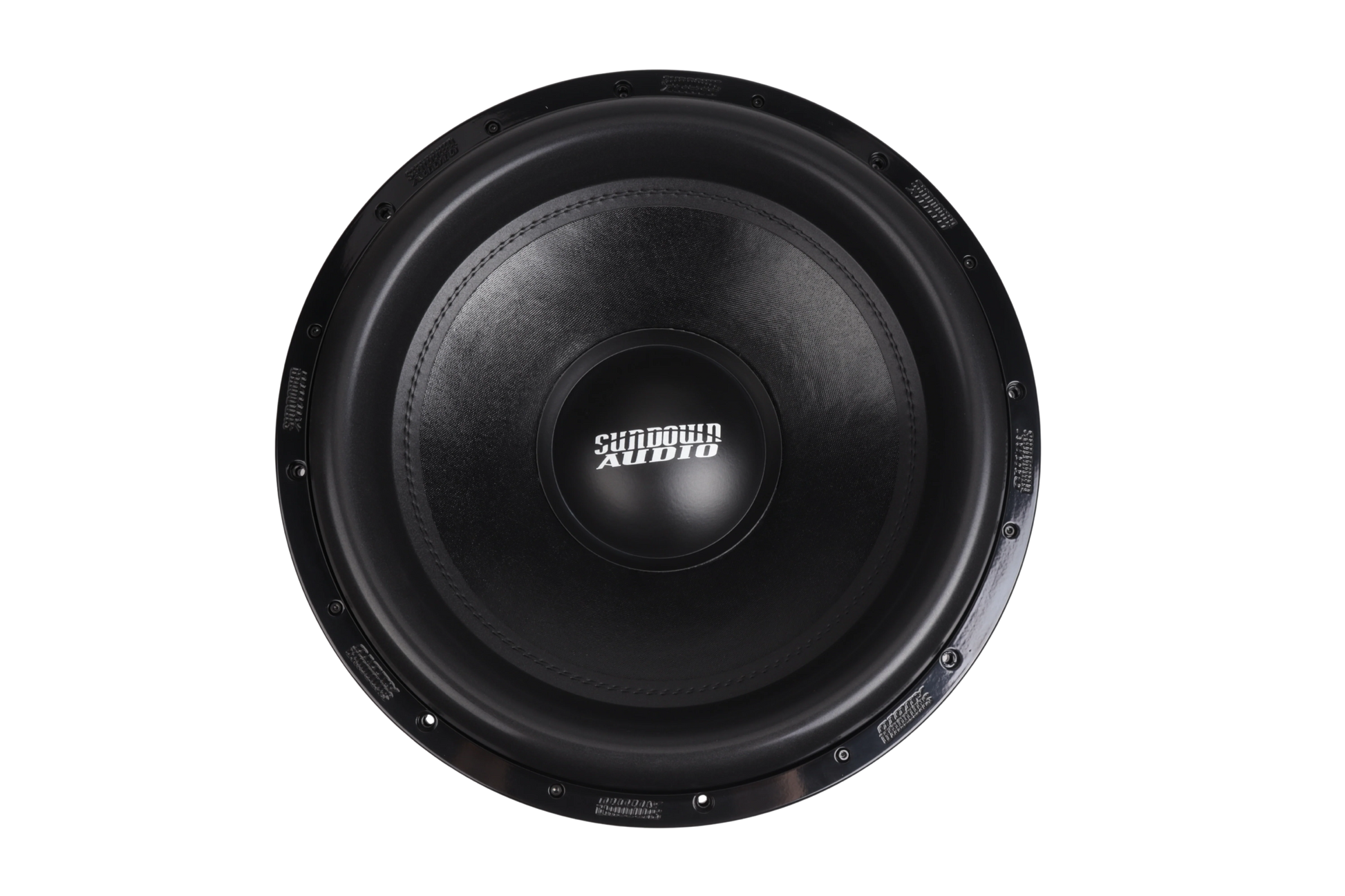

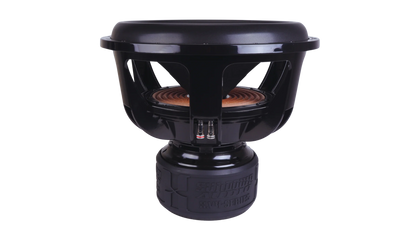

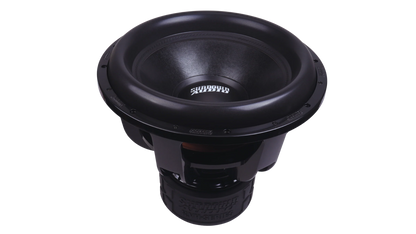

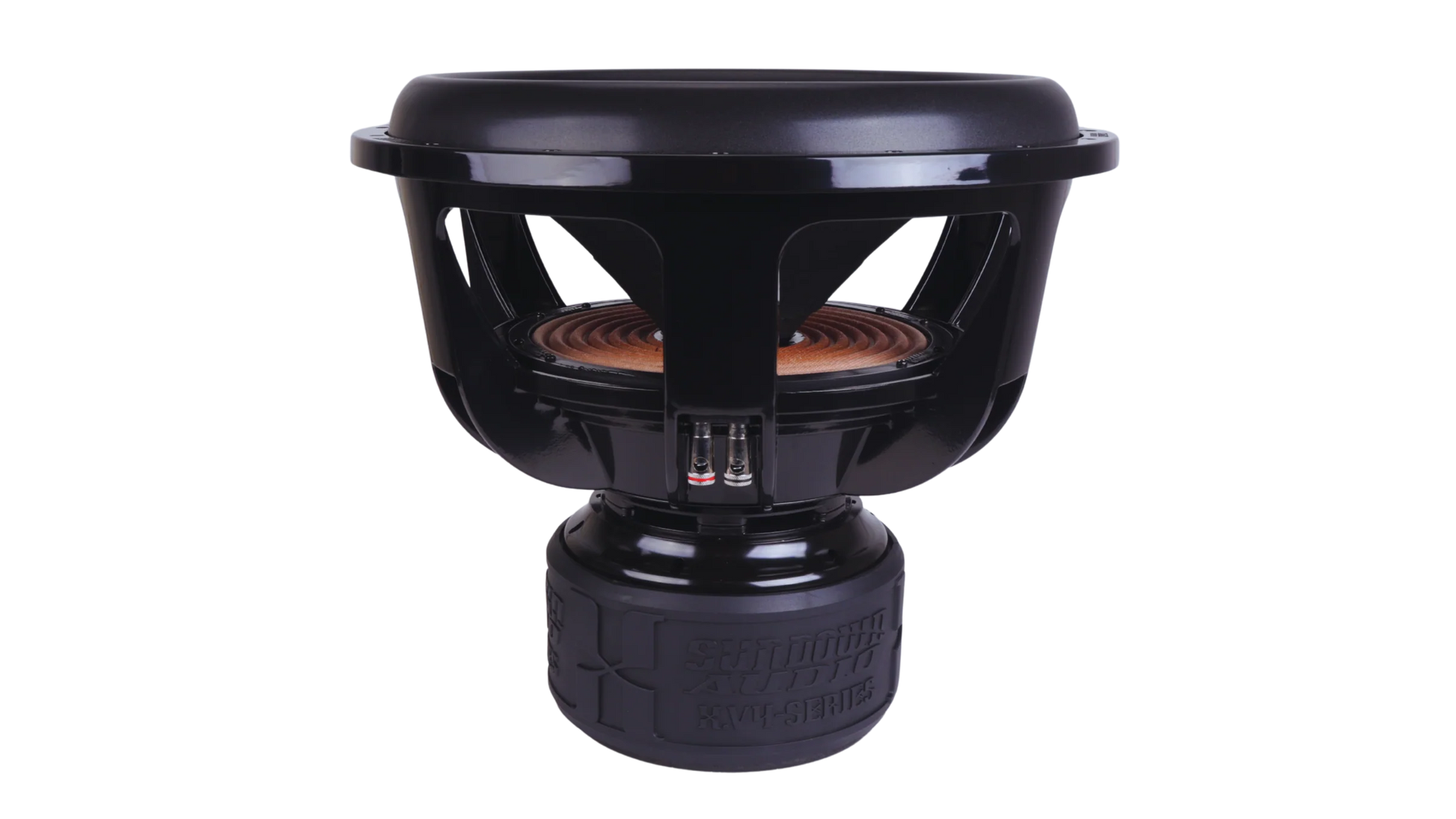

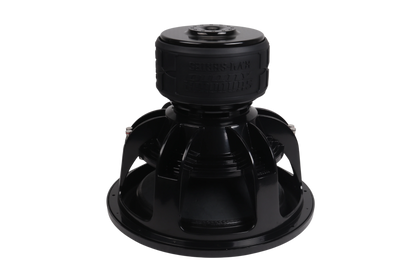

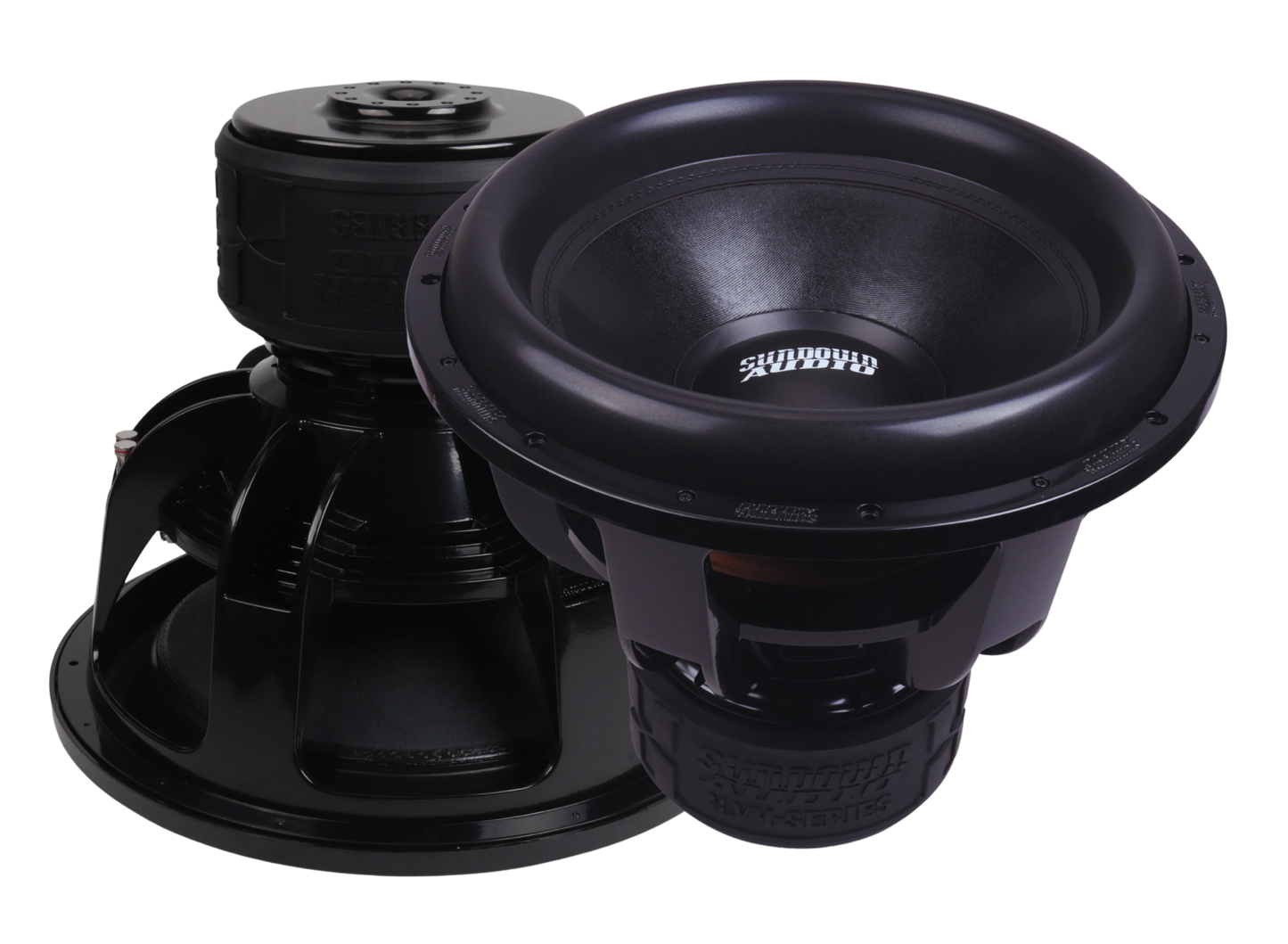

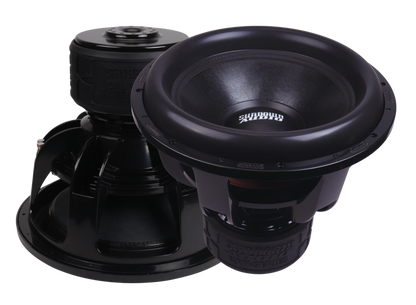

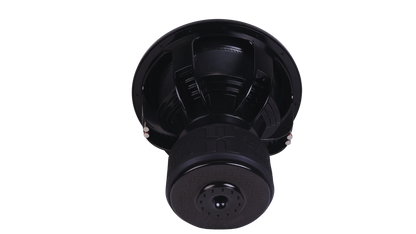

Sundown Audio X-15 v.4

Sundown Audio X-15 v.4

€1.549,99 EUR
€1.549,99 EUR
Sale Ausverkauft
Inkl. Steuern.
Variante

Key Features

  • 18″ Xv4 Series Subwoofer

  • 3000W RMS / 6000W Peak Power

  • Dual 1-Ohm or Dual 2-Ohm Voice Coil Options

  • Precision-engineered X v.4 Coils for stability

  • Heavy-duty motor with 9.25″ diameter

  • Deep bass response with 30 mm Xmax

  • Sealed or ported enclosure compatibility

  • Recommended Port Tuning: 32 Hz

  • Built for extreme durability and clean sound

Technical Specifications

Specification Value
RMS Power 3000 W
Peak Power 6000 W
Displacement 0.28 cu ft
Mounting Depth 15″
Outside Diameter 18.42″
Cutout Diameter 16.69″
Motor Diameter 9.25″
Sealed Enclosure Not Recommended
Ported Enclosure 7.00 cu ft
Recommended Port Tuning 32 Hz
Recommended Port Area 112 sq in
4th Order Sealed Side 3.0 cu ft
4th Order Ported Side 9.0 cu ft
4th Order Port Area 180 sq in
4th Order Port Length 8″
Xmax 30 mm
SD (Cone Area) 113.41
RE (Ohms) 2.05 / 3.74
FS (Hz) 25.87 / 25.58
VAS (L) 93.67
Qes 0.63 / 0.55
Qms 4.13 / 4.03
Qts 0.54 / 0.84
BL (NA) 19.74 / 26.8
Mms 737.81 / 656.74
Sensitivity 86 / 87 dB





T/S Specs
RMS Power (D2)
3000
RMS Power (D1)
3000
Peak Power (D1)
6000
Peak Power (D2)
6000
RE D1 (Ohms)
2.05
RE D2 (Ohms)
3.74
FS D1 (Hz)
25.87
FS D2 (Hz)
25.58
VAS D1 (L)
93.67
VAS D2 (L)
1.7.58
Qes D1
0.63
Qes D2
0.55
Qms D1
4.13
Qms D2
4.03
Qts D1
0.54
Qts D2
0.84
BL D1 (NA)
19.74
BL D2 (NA)
26.8
Mms D1 (Grams)
737.81
Mms D2 (Grams)
656.74
Cms D1 (uM/N)
51.28
Cms D2 (uM/N)
58.9
Sens D1 (dB @ 1w/1m)
86
Sens D2 (dB @ 1w/1m)
87
Xmax D1
30mm
Xmax D2
30mm
Subwoofer Measurements
Displacement (Inches)
0.28cu.ft.
Depth (Inches)
15"
Cutout (Inches)
16.69"
Motor Diameter (Inches)
9.25"
Ported Enclosure Specs
Ported Enclosure Size
7.00 cu ft
Recommended Port Area
112 sq in
Recommended Port Tuning
32 hz
4th Order Enclosure Specs
4th Order Sealed Side
3.0cu ft
4th Order Ported Side
9.0cu ft
4th Order Port Area
180sq in
4th Order Port Length
8"
